V series vacuum machines

Finimac produces vacuum sandblasters for manual sandblasting and shot peening. The V series uses a suction system: compressed air generates a vacuum in the gun that draws the abrasive from the tank and conveys it to the tungsten carbide nozzle, creating the working jet that is directed onto the workpiece.

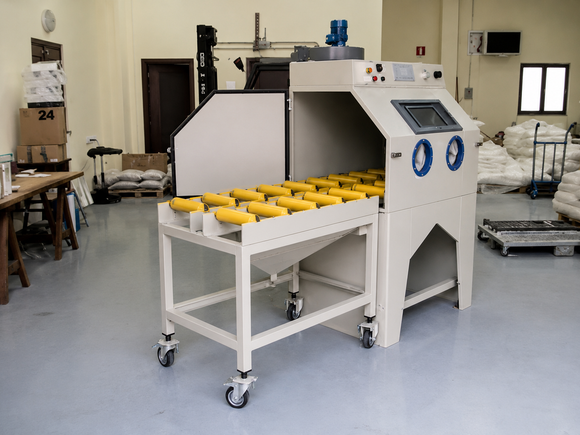

Macchina da banco Finimac

Abrasive recovery and construction quality

Finimac vacuum sandblasters include four standard models, differentiated by increasing work area size. All models feature a cyclone for continuous abrasive recovery and regeneration, eliminating residues produced during processing. The structure is coated with oven-baked epoxy powders, a choice that increases wear resistance and contributes to the machine's longevity. The booths are designed with select components and materials to offer quality, versatility, and operational continuity. You can work with glass beads, corundum, sand, plastic granules, vegetable granules, and metal abrasives, choosing the material best suited to the workpiece and the final result.

Applications in surface treatment

The treatment result depends on the compressed air pressure, the type of abrasive, and the exposure time on the surface. With a vacuum cabinet, you can perform contaminant cleaning, hardening shot blasting, deburring, satin finishing, deoxidation, paint stripping, and surface preparation for bonding metals, paints, or rubber. Each machine integrates a treatment cabinet, cyclone, and filtration system, using a bag or cartridge filter depending on the configuration. This combination of elements helps maintain a more orderly and efficient process for daily use in the department.

Technical features

Characteristic Model V0 Model V1 Model V2 Model V3
Working area dimensions AxBxC mm 700x500x500 900x600x600 1100x850x750 1500x1200x900
Worktop height H mm 850 850 850 850
Overall dimensions DxExF mm 750x950x1550 980x1050x1650 1180x1300x1760 1580x1650x1910
Weights Kg 190 200 285 430
Compressed air consumption at 6 bar lt/h 650 650 650 650
Vacuum cleaner power HP 0,75 0,75 0,75 0,75
Electricity consumption kW 0,80 0,80 0,80 0,80

The machines can be equipped with various accessories upon request:

  • manual rotary table
  • extractable trolley with rotating table
  • self-cleaning cartridge dust filter
  • internal and external roller conveyor
  • rotating basket for automatic processing of small parts
  • automatic rotary table with oscillating gun holder arm

Application Gallery

Grande macchinario industriale in un'officina, con pannelli metallici grigi e finestre rotonde di ispezione su una piattaforma rialzata.
Interno di un rimorchio industriale nero con pavimento bianco, finestre e un piccolo schermo espositivo all'interno.
Macchinario industriale con rulli gialli in un'officina pulita, accanto a un pannello di controllo su ruote.
Macchinario industriale con sportelli aperti in un'officina, che contiene al suo interno una lamiera metallica perforata.

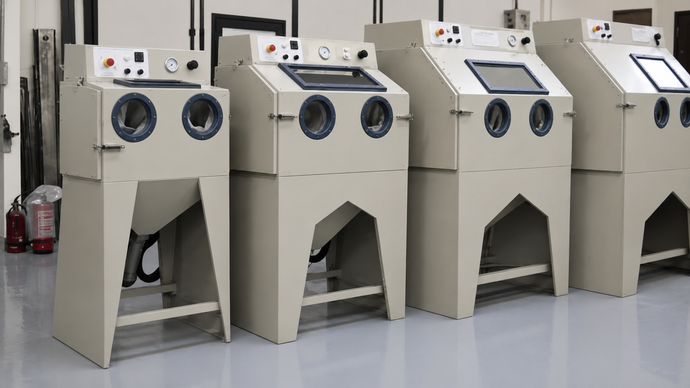

Macchina manuale Finimac

Request a technical evaluation

Contact Finimac to determine the best machine for your production cycle, from manual sandblasting to customized automatic systems.
